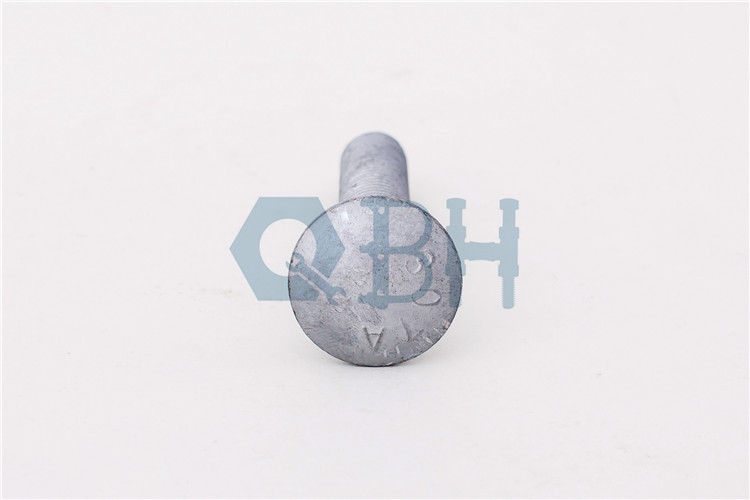

Carriage Bolt H.D.G. 307A

Product Description

Standard	ASME/ASTM
Size	M5-M20
Class	307A
Finish	H.D.G. (Hot Dip Galvanizing)
Material	Low Carbon
Packing	Bulk Boxes In Cartons, Bulk In Polybags/ Buckets, etc.
Pallet	Solid Wood Pallet, Plywood Pallet, Ton Box/ Bag, Etc.
Mechanical Properties	Steel: SAE J995

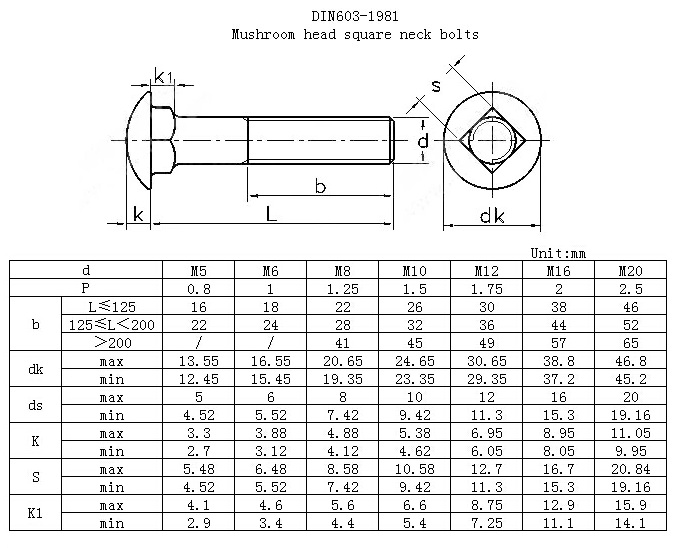

Dimension

Details
