ANSI B18.21.1 Spring Lock Washers

Product Description

Standard	ASME B18.21.1
Size	1/4"-1-1/2"
Finish	Plain
Material	Carbon Steel
Packing	Bulk In Cartons, Bulk In Polybags/ Buckets, etc.
Pallet	Solid Wood Pallet, Plywood Pallet, Ton Box/ Bag, Etc.

Dimension

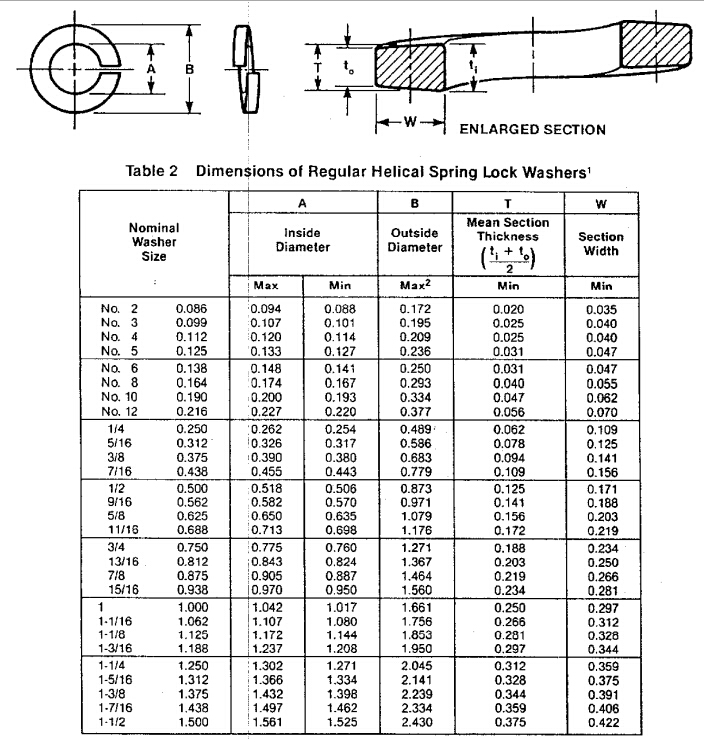

asme b18.21.1.-regular.jpg

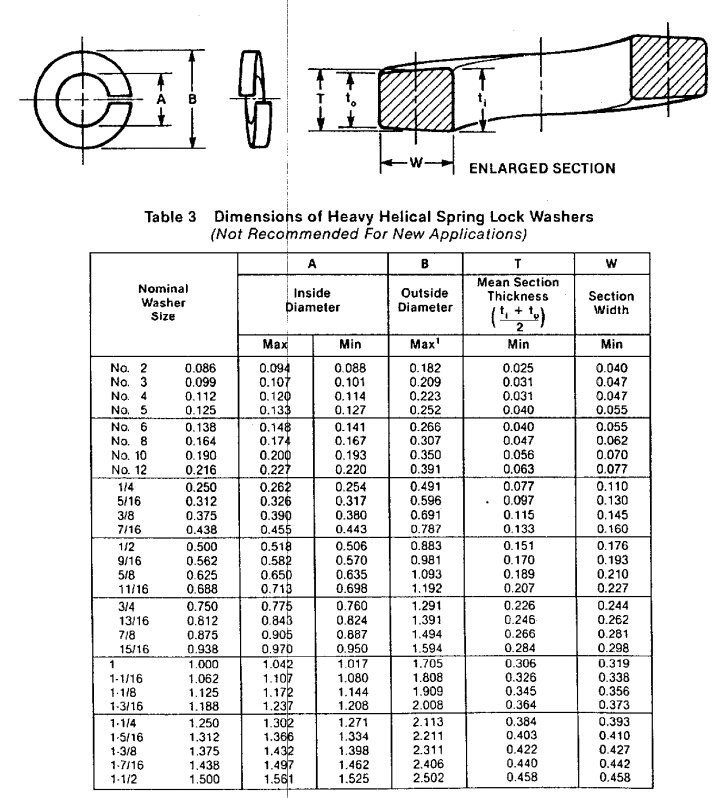

asme b18.21.1.-heavy.jpg
